Guardian - Model G300-B- Automatic Residential Fire Suppression System w/Electric Shut-off & Interconnect Cable

Product Data Spec Sheet Download PDF

Guardian Technical Specifications PDF

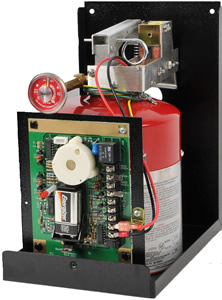

The Guardian III  Model (G300-B) is a unique, state-of-the-art residential, range-top automatic fire suppression system for your home. It is also approved by Underwriter's Laboratories (UL & ULC) for the protection of residential cooking equipment in light commercial occupancies*, such as group homes, dormitories, day care centers, church kitchens, fire stations, break rooms, libraries, and civic group meeting halls. This self-contained system can be installed by a handy homeowner or contractor in under an hour.

When a stove-top fire occurs the sensor will activate at a pre-set temperature and signal the main CPU board.  This board automatically sends a signal to release the extinguisher valve assembly, discharging the wet agent and simultaneously activating the CPU mounted alarm.
More outputs are available for additional accessories to be utilized upon the system's activation.  Each system can also be wired into an existing alarm panel showing system activation.  This system is UL and ULC listed with a fuel shutoff and is listed with or without a pull station.

• No Electrician Needed for making wiring shut-off connections during the installation, thus saving money.

• This system normally can be installed in about an hour!

• This system activates automatically at a pre-set temperature, thus not using a mechanical fusible link, during the detection mode.

• This system is the most user friendly and easiest for the average home-owner to install.

Specifications:

Guardian G300B
Operation: Electronic
Coverage: Electric Ranges up to 42” wide x 24” deep or 1,008 sqi. Gas Ranges 36” wide x 24” deep or 864 sqi.
Hood: Any standard residential hood with a single light and fan in the center that meets the same range size requirements. The bottom of the hood must have a minimum height of 18” to the range and cannot exceed 30”.
Nozzles: Requires a minimum height of 18” from the tip of the nozzle to the range and a maximum of 31”.

View owners installation maunual G310A-B dated
May 1, 2011 revised September 1, 2012 for complete
system applications and limitations. This manual also covers the G300-A Systems.

 Guardian Systems Technical Support Questions- Please call 800-359-3473.
