"T" - SERIES Reach - In Refrigerator

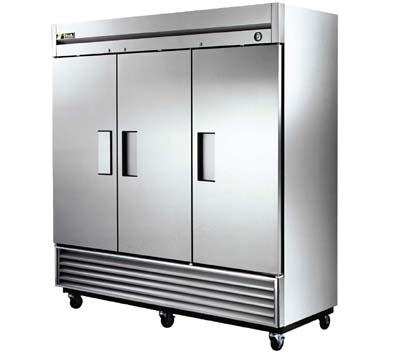

TRUE - SOLID 3 DOOR REFRIGERATOR 72 CUBIC FT. MODEL T72 STANDARD FEATURES: Oversized and balanced, environmentally friendly (134A) refrigeration system - holds 33°F to 38°F. 300 series stainless steel doors & front. Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners. Anodized quality aluminum top, sides and back. Recessed handles (lifetime guarantee). Exterior mounted temperature monitor. Door locks standard. Magnetic door gaskets. Adjustable vinyl coated wire shelves. Epoxy coated evaporator. Incandescent interior lighting (fluorescent interior lighting for glass door models). 4" diameter swivel castors standard equipment - locking castors provided for front set. Foamed-in place polyurethane high density cell insulation (CFC free). Slide out compressor can be serviced easily and accessed by a single repairman. 1 year parts & labor warranty (USA). 5 year compressor warranty. Energy Efficiency/Compliance: This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy Commission efficiency standards.

REFRIGERATION SYSTEM: Refrigeration system factory balanced using CFC free 134A refrigerant. Bottom mounted condensing unit - easy access for maintenance. Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33°F to 38°F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve) Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion. CABINET CONSTRUCTION: 300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back. NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners. Barrel lock standard for each door. Locks keyed alike. Dial exterior mounted temperature monitor. Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors, front castors include brakes. DOORS: 300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction. Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in-place to insure permanent attachment. INSULATION: Entire cabinet structure and doors insulated using foamed-in-place CFC free polyurethane foam. SHELVING: Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs. Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf. LIGHTING: Incandescent interior lighting. Light(s) activated by rocker switch mounted above door(s). ELECTRICAL CHARACTERISTICS: Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. Cord and plug set included. A sole use circuit is required. OPTIONAL ACCESSORIES: (At Extra Cost - Lead Time May Apply) T-72 available with three right or three left hinges (no charge). Available with 6" stainless steel or optional seismic legs. Additional shelves available T-72 available with optional wine racks. T-49 & T-72 available with optional novelty baskets. Clearance Required For Coolers (USA) Sides Inches / mm Top Inches / mm Rear Inches / mm 0 / 0 0 / 0 1 / 26 ROUGH - IN DATA Model Doors Capacity (Cu. Ft.) # of Shelves Cabinet Dimensions (Inches) HP Volts PH Amps NEMA Config. Cord Length (Total Ft.) Crated Weight L D H * T72 (1,2) 3 72 9 78 1/8 29 1/2 79 1/8 1/2 115 1 11.8 5-15 9 580 (1) Available with full glass doors (2) Available with solid half doors, glass half doors & combination solid/glass half doors * Height does not include 5�€� for castors or 6�€� for optional legs. Specifications subject to change without notice. Model Elevation Right Plan 3D T72 TFEY01E TFEY01S TFEY01P TFEY013
