Solid Door Refrigerators - "T" Series

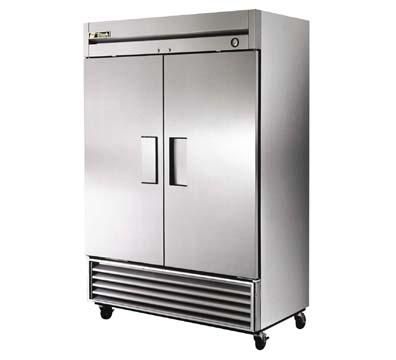

TRUE SOLID 2 DOOR REFRIGERATOR 49 CUBIC FT. MODEL T49 STANDARD FEATURES: Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace. Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. 300 series stainless steel solid doors and front. The finest stainless available; higher tensile strength for fewer dents and scratches. Adjustable, heavy duty PVC coated shelves. Positive seal self-closing doors Lifetime guaranteed door hinges and torsion type closure system. BOTTOM MOUNTED UNITS FEATURE: ”No stoop” lower shelf. Storage on top of cabinet. Compressor performs in coolest, most grease free area of kitchen. Easily accessible condenser coil for cleaning. Energy Efficiency/Compliance: This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy Commission efficiency standards.

DESIGN: True’s solid door reach-in’s are designed with enduring quality that protects your long term investment. True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today’s food service marketplace. REFRIGERATION SYSTEM: Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant. Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-in’s a superior low velocity, high volume airflow design. This unique design insures faster temperature recovery and shorter run times in the busiest of foodservice environments. Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit. CABINET CONSTRUCTION: Exterior - 300 series stainless steel front, grill and shroud. Anodized quality aluminum exterior ends and back. Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor with coved corners. Insulation - entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation. Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out. Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set. DOORS: 300 series stainless steel exterior with white aluminum door liner to match cabinet interior. Doors extend full width of cabinet shell. Door locks standard. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system. Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to insure permanent attachment. Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning. SHELVING: Six (6) adjustable, heavy duty PVC coated wire shelves 24 9/16"L x 22 3/8"D (624 mm x 569 mm). Four (4) chrome plated shelf clips included per shelf. Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments. Each shelf supports up to 250 lbs. (114 kg). LIGHTING: Incandescent interior lighting - safety shielded. Lights activated by rocker switch mounted above doors. MODEL FEATURES: Exterior mounted temperature monitor. Evaporator is epoxy coated to eliminate the potential of corrosion. NSF-7 compliant for open food product. ELECTRICAL CHARACTERISTICS: Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included. OPTIONAL ACCESSORIES: (At Extra Cost - Lead Time May Apply) 230 - 240V / 50 Hz. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. Doors hinged on left (factory installed). Additional shelves. Half door bun tray racks. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately). Full door bun tray racks. Hold up to twenty-two 18"L x 26"D (305 mm x 508 mm) sheet pans (sold separately). Remote cabinets (condensing unit supplied by others), consult factory technical service dept. for BTU information. ROUGH - IN DATA Specifications subject to change without notice. Model Solid Doors Capacity (Cu. Ft.) # of Shelves Cabinet Dimensions (Inches) HP Volts Amps NEMA Config. Cord Length (Total Ft.) Crated Weight L D H * T49 2 49 6 54 1/8 29 1/2 78 3/8 1/2 115/60/1 9.5 5 - 15P 9 420 * Height does not include 5" for castors or 6" for optional legs. WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only) SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Model Elevation Right Plan 3D T49 TFEY20E TFEY20S TFEY02P TFEY023
