T-Series Reach-In Refrigerators:

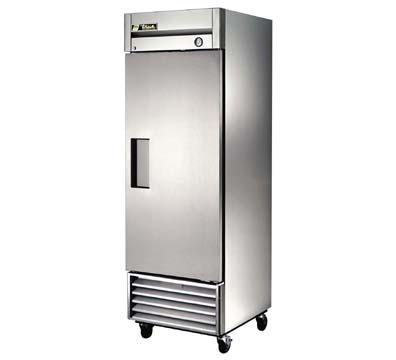

TRUE - SOLID DOOR REACH-IN REFRIGERATOR (23 CUBIC FT) MODEL T23 STANDARD FEATURES: True�€™s solid door reach-in�€™s are designed with enduring quality that protects your long term investment. Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, superior food safety and the best value in today�€™s food service marketplace. Oversized, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. 300 series stainless steel solid doors and front. The finest stainless available; higher tensile strength for fewer dents and scratches. Adjustable, heavy duty PVC coated shelves. Positive seal self-closing door. Lifetime guaranteed door hinges and torsion type closure system. BOTTOM MOUNTED UNITS FEATURE: �€�No stoop�€� lower shelf. Storage on top of cabinet. Compressor performs in coolest, most grease free area of kitchen. Easily accessible condenser coil for cleaning. Energy Efficiency/Compliance: This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy Commission efficiency standards.

DESIGN: True�€™s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, superior food safety and the best value in today�€™s food service marketplace. CABINET CONSTRUCTION: Exterior - 300 series stainless steel front grill and shroud. Anodized quality aluminum exterior ends and back. Interior - attractive, NSF approved, white aluminum liner. 300 series stainless floor with coved corners. Insulation - entire cabinet structure and solid doors are foamed- in place using high density, CFC free, polyurethane insulation. Cabinet mounted on a welded, heavy duty galvanized frame rail. Rail dipped in rust inhibiting enamel paint for corrosion protection inside and out. Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set. DOORS: 300 series stainless steel exterior with white aluminum door liner to match cabinet interior. Doors extend full width of cabinet shell. Door locks standard. Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system. Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to insure permanent attachment. Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning. SHELVING: Three (3) adjustable, heavy duty PVC coated wire shelves 22 7/8"L x 23 1/4"D (582 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf. Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments. LIGHTING: Incandescent interior lighting - safety shielded. Lights activated by rocker switch mounted above doors. MODEL FEATURES: Exterior mounted temperature monitor. Evaporator is epoxy coated to eliminate the potential of corrosion. NSF-7 compliant for open food product. REFRIGERATION SYSTEM: Factory engineered self-contained, capillary tube system using environmentally friendly (CFC free) 134A refrigerant. Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades give True reach-in�€™s a superior low velocity, high volume airfl ow design. This unique design insures faster temperature recovery and shorter run times in the busiest of food service environments. Bottom mounted condensing unit positioned for easy maintenance. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit. ELECTRICAL CHARACTERISTICS: Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included. OPTIONAL ACCESSORIES: (At Extra Cost - Lead Time May Apply) 230 - 240V / 50 Hz. 6" (153 mm) standard or seismic/flanged legs. Door hinged on left (factory installed). Additional shelves. Half door bun tray rack. Holds up to eleven 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately). Full door bun tray racks. Holds up to twenty-two 18"L x 26"D (458 mm x 661 mm) sheet pans (sold separately). Remote cabinets and condensing units, consult factory technical service dept. for BTU information. ROUGH - IN DATA Specifications subject to change without notice. Model Doors Capacity (Cu. Ft.) # of Shelves Cabinet Dimensions (Inches) HP Volts Amps NEMA Config. Cord Length (Total Ft.) Crated Weight L D H * T23 1 23 3 27 29 1/2 78 3/8 1/3 115/60/1 7.6 5-15P 9 260 * Height does not include 5" or castors or 6" for optional legs. WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only) SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Model Elevation Right Plan 3D T23 TFEY03E TFEY03S TFEY03P TFEY03
