T-Series Reach-In FREEZER:

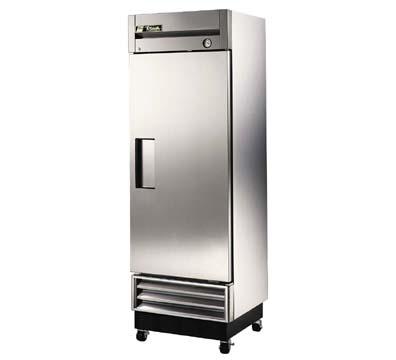

TRUE - SOLID DOOR REACH-IN FREEZER 19 CUBIC FT. -23.3°C (-10°F) FREEZERS [ T-19F ] MODEL T19F STANDARD FEATURES: Oversized and balanced, environmentally friendly (R404A) refrigeration system holds -10°F (T-19FZ holds 0°F). 300 series stainless steel doors & front. Interior - NSF approved, white vinyl coated aluminum sides and top, 300 series stainless steel floor with coved corners. Anodized quality aluminum top, sides and back. Airflow back guard provided for improved airflow. Recessed handles (lifetime guaranteed). Exterior mounted temperature monitor. (not available for T-12F). Door locks (not available for T-12F). Large evaporator and coil heater permit short defrost cycle. Magnetic door gaskets. Adjustable vinyl coated wire shelves. Epoxy coated evaporator. Incandescent interior lighting (fluorescent interior lighting for glass door models). Foamed-in-place high density polyurethane insulation (CFC free). T-19F & T-19FZ: 2 1/2” diameter castors standard equipment. Slide out compressor can be serviced easily and accessed by a single repairman. Defrost system time initiated, temperature terminated. Automatic evaporator fan motor delay during defrost cycle. 1 year parts & labor warranty (USA). 5 year compressor warranty. Energy Efficiency/Compliance: This product is certified to the California Energy Commission by the manufacturer as meeting currently applicable efficiency standards. This product either meets federal efficiency standards or, where there are no federal efficiency standards, meets California Energy Commission efficiency standards.

CABINET CONSTRUCTION: 300 series stainless steel front grill, shroud and doors. Anodized quality aluminum exterior ends and back. NSF approved, white vinyl coated aluminum and 300 series stainless floor with coved corners. Barrel lock standard for each door (excluding T-12F). Dial exterior mounted temperature monitor. Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection. Frame rail fitted with 4" diameter castors, front castors include brakes (castors not available for the T-12F; 2 1/2” castors standard for T-19F & -FZ). Rear wall airflow guard prevents frozen product from blocking optimal airflow. DOORS: 300 series stainless steel exterior with white aluminum interior to match cabinet liner. Doors extend full width of cabinet shell. Door gaskets of one piece construction. Lifetime guaranteed adjustable torsion type closure system with aluminum block supports. The face of each door fitted with a 12" long recessed handle with sheet metal interlock. Handles are foamed-in-place to insure permanent attachment. INSULATION: Entire cabinet structure and solid door insulated using foamed-in-place CFC free polyurethane foam. SHELVING: Adjustable vinyl coated wire shelves (3 per section). Shelves capable of supporting up to 250 lbs. Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf. LIGHTING: Incandescent interior lighting. Light (s) activated by rocker switch mounted above door (s). REFRIGERATION SYSTEM: Refrigeration system factory balanced using CFC free R404A refrigerant. Bottom mounted condensing unit - easy access for maintenance. Factory pre-engineered capillary tube system with oversized condenser (excluding T-19FZ) and evaporator to reduce product pull down time and to consistently maintain -10°F (T-19FZ holds 0°F) interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve) Defrost system time initiated, temperature terminated. Automatic evaporator fan motor delay during defrost cycle. Large evaporator and coil heater permit short defrost cycle. Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion. ELECTRICAL CHARACTERISTICS: Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be included. A sole use circuit is required. OPTIONAL ACCESSORIES: (At Extra Cost - Lead Time May Apply) T-23F available with 6" stainless steel or optional seismic legs 6" (153 mm) standard or seismic/flanged legs. T-23F available with 6" stainless steel or optional seismic legs Optional novelty baskets available. Clearance Required For Coolers (USA) Sides Inches / mm Top * Inches / mm Rear Inches / mm 0 / 0 1 / 26 3 / 77 ROUGH - IN DATA Model Doors Capacity (Cu. Ft.) # of Shelves Cabinet Dimensions (Inches) HP Volts PH Amps NEMA Config. Cord Length (Total Ft.) Crated Weight L D H T19F (1) 1 19 3 27 24 1/2 75 1/4 1/2 115 1 6.8 5-15 9 285 (1) Available with full glass doors * Height does not include 5” for castor height or 6” for optional legs on T-23F; 3 1/4” for castors on T-19F & T-19FZ, legs available; T-12F standard with leg levelers, available with optional 2 1/2” diameter castors, legs not available. Specifications subject to change without notice. Model Elevation Right Plan 3D T19F TFE015E TFE015S TFE015P TFE0153
