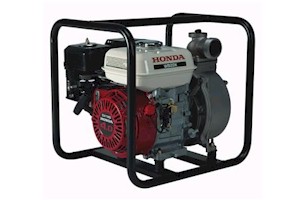

HONDA WB20XK2

2 inch pump. Powered by Honda's 4 HP GX Series OHV premium residential engine with Rigid Mounted Cast Iron Volute and Cast Iron Impeller. For construction, agriculture and rental use, this rugged new water pump delivers Honda's renowned premium performance and quality at a reduce price.

FEATURES & BENEFITS A rigid-mounted cast iron pump volute An abrasion-resistant silicone-carbide mechanical deal High-performance mounts minimize vibration between engine/pump unit and the frame PLUS Legendary Honda commercial grade OHV engine Durable full frame protection Heavy-duty cast iron impeller Lightweight aluminum pump case Non-corrosive drain and fill plugs Oil Alert for engine protection Meets or exceeds all CARB and EPA 2006 emission regulations

SPECIFICATIONS Engine Honda GX120, 4.0 HP OHV Displacement 118 cc Bore and Stroke 2.4" x 1.7" Compression Ratio 8.5:1 Oil Alert Std Pump Type Contrifugal, Self-Priming Volute Rigid-Mounted Cast Iron Impeller Cast Iron Mechanical Seal Silicone Carbide Priming Time 110 sec @ 16.4 ft. Drive System Direct Discharge Capacity 152 gal/min Suction Port Diameter 2" NPT Discharge Port Diameter 2" NPT Total Head Lift 92 ft. Suction Head Lift 26 ft. Maximum Pressure 40 psi Solids Handling 5/16" (8mm) Dimensions 17.9" x 14.4" x 16.5" Dry Weight 46 lb. Strainer Part Number 78325-YB3-661
