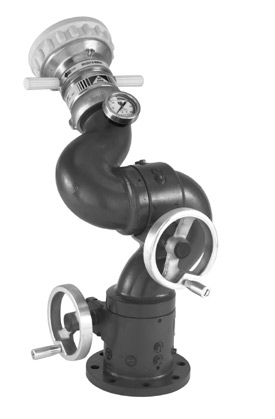

Elkhart's 8394-02 Spit-Fire®Monitor
| 8394-02 Spit-Fire®Monitor |
| Constructed of rugged, corrosion-resistant, cast brass with hardened steel worm gears • Fully enclosed gear cases for protection from the elements • Flows up to 2000 GPM through 4.0" waterway with cast-in vane • Double handwheel control assures ease of operation and positive lock in any posi-tion • Vertical travel is 135° (90° above to 45° below horizontal) • Horizontal travel is a full, continuous 360° (Handwheel remains stationary) • Bronze balls in all ball races • Furnished with liquid filled, 0-300# pressure gauge • Grease zerks for easy lubrication • Male outlet 3.5" NHT • Base inlet is 4.0" 150# ANSI flange • Finish red urethane enamel with satin brass trim • Weight, 126.00 lbs. w/o shaper and tip • Dimensions: 13.25" W; 20.00" H. |
| Specifications |
| GPM Flow |
L/min Flow |
Threads Discharge |
Base |
Optional Tip |
Tip Max. Size |
Optional Shaper |
| 2000 |
7570 |
3.50" NHT |
4.00"-150# ANSI Flange |
181-3 |
2.50" |
284B |
|
Price: $4,231.00
