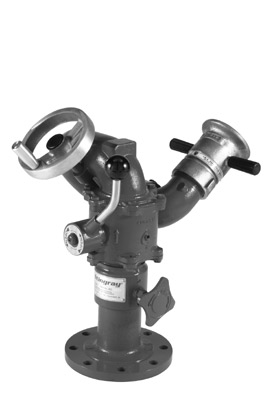

Elkhart's 8393IV Stingray®Monitor with Integral Ball Valve


8393IV Stingray®Monitor with Integral Ball Valve
Features Benefits
• Rugged, Corrosion Resistant Brass Construction
• Flows up to 1250 GPM
• FM Approved
• Flow Efficient 3.0" Waterway
• Fully Enclosed Gear with Stainless Steel Worm
• 140° Vertical Travel
• 360° Horizontal Rotation with Twist Lock
• Bronze Balls in Ball races
• Grease Fittings for Easy Lubrication
• Compact Size
• Available as Hydrant Mount
• Available as Wheeled Portable Units
• Available with Integral Ball Valve
• Years of Dependable Service
• Ease of Operation
• Minimal Friction Loss
• Safe Operations
• Minimal Field Maintenance
• Flexible Installation Options
• Cost Effective
• Easy Installation
• Elkhart Quality

Same as 8393 except with integral 3.0" quarter turn, full flow ball valve • Finish red urethane enamel *Not available as hydrant mount or wheeled portable unit.

Specifications
GPM Flow L/min Flow Threads Discharge Base Width Depth Height Weight Lbs.
1250 4730 2.5" 3.0" or 4.0"-150# ANSI Flange or 3.0" NPT Fe 14.75" 15.75" 20.375" 68.25
Price: $2,130.00
Buy Product Online | Visit Store Home

Manufactured by Elkhart Brass
