Elkhart's 8393H Stingray®Hydrant Monitor

8393H Stingray®Hydrant Monitor

Features

Benefits

•	Rugged, Corrosion Resistant Brass Construction
•	Flows up to 1250 GPM
•	FM Approved
•	Flow Efficient 3.0" Waterway
•	Fully Enclosed Gear with Stainless Steel Worm
•	140° Vertical Travel
•	360° Horizontal Rotation with Twist Lock
•	Bronze Balls in Ball races
•	Grease Fittings for Easy Lubrication
•	Compact Size
•	Available as Hydrant Mount
•	Available as Wheeled Portable Units
•	Available with Integral Ball Valve

•	Years of Dependable Service
•	Ease of Operation
•	Minimal Friction Loss
•	Safe Operations
•	Minimal Field Maintenance
•	Flexible Installation Options
•	Cost Effective
•	Easy Installation
•	Elkhart Quality

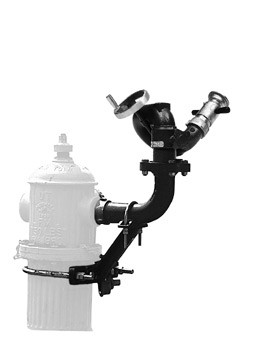

Same as 8393 except furnished with hydrant mount elbow assembly for attachment to 2.5" hydrant outlet • For flows up to 750 GPM • Complete with support arm and all necessary hardware to install on hydrants with barrel diameter up to 10.875" • Finish red urethane enamel. FM approved.

Specifications
GPM Flow	L/min Flow	Threads Discharge	Base	Width	Depth	Height	Weight Lbs.
750	2840	2.5"	2.5" Fe	14.75"	18.25"	37.50"	85.00
