Elkhart's 8393FW Stingray®Four-Wheeled Portable Monitor

8393FW Stingray®Four-Wheeled Portable Monitor

Features

Benefits

•	Rugged, Corrosion Resistant Brass Construction
•	Flows up to 1250 GPM
•	FM Approved
•	Flow Efficient 3.0" Waterway
•	Fully Enclosed Gear with Stainless Steel Worm
•	140° Vertical Travel
•	360° Horizontal Rotation with Twist Lock
•	Bronze Balls in Ball races
•	Grease Fittings for Easy Lubrication
•	Compact Size
•	Available as Hydrant Mount
•	Available as Wheeled Portable Units
•	Available with Integral Ball Valve

•	Years of Dependable Service
•	Ease of Operation
•	Minimal Friction Loss
•	Safe Operations
•	Minimal Field Maintenance
•	Flexible Installation Options
•	Cost Effective
•	Easy Installation
•	Elkhart Quality

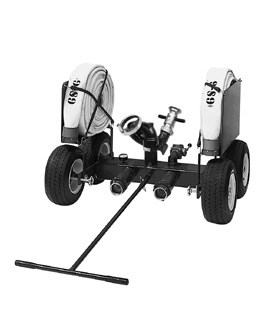

8393 monitor mounted on 4-wheeled portable cart • For flows up to 750 GPM • Two 2.5" clappered swivel inlets standard • Optional with 3rd and 4th 2.5" swivel inlet or one 4.0" or 5.0" Storz inlet • .375" petcock drain in manifold • 300# pressure gauge • Wheels have pneumatic tires and friction locks for deployment stability • Safety stops limit vertical travel to 25 degrees above horizontal and limit horizontal travel to 45 degrees either side of center • Optional hose racks over wheels each hold 50' donut roll of 2.5" hose • Optional with 1.5" gated outlets • Finish red urethane enamel

Specifications
GPM Flow	L/min Flow	Threads Discharge	Base	Width	Depth	Height	Weight Lbs.
750	2840	2.5"	(2) 2.5" Fe	44.00"	66.00"	25.00"	230.00
