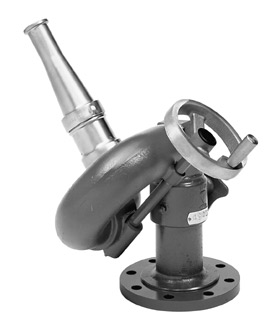

Elkhart's 8393 Stingray®Monitor

8393 Stingray®Monitor

Features

Benefits

•	Rugged, Corrosion Resistant Brass Construction
•	Flows up to 1250 GPM
•	FM Approved
•	Flow Efficient 3.0" Waterway
•	Fully Enclosed Gear with Stainless Steel Worm
•	140° Vertical Travel
•	360° Horizontal Rotation with Twist Lock
•	Bronze Balls in Ball races
•	Grease Fittings for Easy Lubrication
•	Compact Size
•	Available as Hydrant Mount
•	Available as Wheeled Portable Units
•	Available with Integral Ball Valve

•	Years of Dependable Service
•	Ease of Operation
•	Minimal Friction Loss
•	Safe Operations
•	Minimal Field Maintenance
•	Flexible Installation Options
•	Cost Effective
•	Easy Installation
•	Elkhart Quality

Rugged, cast brass construction • Full 3.0" unobstructed waterway • Flows up to 1250 GPM • Handwheel driven worm gear fully enclosed and protected from the elements • Stainless steel worm • Vertical travel from 75° above to 65° below horizontal • Gear holds vertical position wherever it is stopped • Four ball races with bronze balls and grease zerks for easy lubrication • Full 360° rotation with positive twist lock • 2.5" male out-let • FM Approved • See chart for base options • Finish red urethane enamel FM

Specifications
GPM Flow	L/min Flow	Threads Discharge	Base	Width	Depth	Height	Weight Lbs.
1250	4730	2.5"	3.0", or 4.0"-150# ANSI Flange or 3.0" NPT Fe	14.75"	15.75"	15.75"	47.50
