Elkhart's 8297-99 Stinger Deck Gun

8297-99 Stinger Deck Gun

Features

Benefits

•	S tinger ®Monitors Durable, Lightweight ELK-O-LITE ® Construction
•	Flow Efficient 3.0" Waterway
•	Fully Enclosed Worm Gear
•	Handwheel Controlled Vertical Travel
•	Safety Stop at 35 Degrees Above Horizontal (Can be overridden in Deck Mount Mode)

•	Convenient Carrying Handle
•	Safety Lock for Base Release
•	360 Degree Horizontal Rotation (In Deck Mount Mode)
•	Positive Horizontal Twist Lock
•	Grease Fitting for Easy Lubrication
•	Liquid-Filled Pressure Gauge
•	Six Optional Portable Bases with Folding Legs
•	Rugged, Cast Almag Legs
•	Positive Leg Locks
•	Self-Adjusting Ground Spikes with Carbide Tips
•	Convenient Carrying Handle (For Portable Base)
•	Free-Swivel Connections on All Single Inlet Bases
•	Two Optional Deck Mounts
•	Flow Efficient 282A Stream Shaper
•	Quad-Stacked Tips ST-194
•	Heavy-Duty 10' Safety Chain

•	Years of Dependable Service
•	Two Guns in One – Deck and Portable
•	Flows up to 1250 GPM
•	Minimal Friction Loss
•	Stores Easily – Compartment, Runningboard,
•	or Tailboard
•	Safe Operation up to Maximum Flow Limits
•	Supply with 2.5", 3.0", 3.5" or LDH in Portable
•	Mode
•	Preconnect Portable Base for “Bomb” Load
•	Pre-plumb for Top Mount Installation
•	Supply Deck Mount Fixture with 1 or 2 Pony
•	Lengths
•	Easy, Minimal Field Maintenance
•	Elkhart Quality

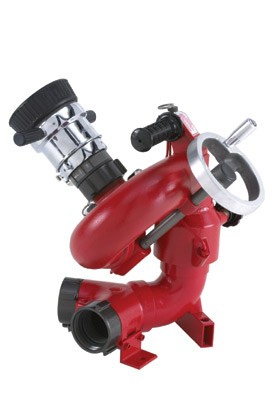

8297-10 upper unit complete with 8299 deck mount fixture for deck gun application • For flows up to 1250 GPM • Finish red urethane enamel with hard anodized trim.

Specifications
GPM Flow	L/min Flow	Threads Discharge	Base	Width	Depth	Height	Weight Lbs.
1250	4730	2.5" NHT	2 - 2.5" Swivels	15.50"	17.00"	18.50"	22.50
