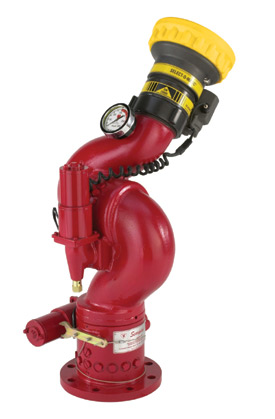

Durable, lightweight Elk-O-Lite construction with hardened steel worm gears • Fully enclosed 90° gear cases and totally sealed electric motors for protection from the elements • Manual override on both motors (.750" nut drive standard/wrench furnished) • Flows up to 2000 GPM through 4.0" waterway with cast-in vane • Vertical travel is 135° (90° above to 45° below horizontal) with 10 safety stop options to meet NFPA 1901 • Horizontal travel is 347° with 37 safety stop options to meet NFPA 1901 • Motors are planetary gear type for maximum torque and minimum power drain • Furnished with grease fittings for easy lubrication • Inlet 4.0"-150# ANSI flange base • Outlet 3.5" NHT male • Finish red urethane enamel • Control system includes: One (1) NEMA 4 relay box, one (1) panel mounted switch control module, and one (1) secondary remote control box • P.I.C. chip design, electronic circuitry for 12VDC operation with normal 3.25 Amp draw • Current limiting motor protection with automatic reset • Circuit board moisture protection • Reverse polarity and auxiliary battery backfeed protection • Plug and cable prewired into relay box • Emergency circuit override capability • Circuit test indicator lights • Primary control will override secondary control and has automatic reset • Optional 12V battery pack • Optional hand-held remote control with 50' of cable • Optional 12/24VDC converter. • Optional 284A stream shaper and SM-1000E combination fog nozzle • Additional optional nozzles: SM-1250E or SM-2000E combination fog nozzle
