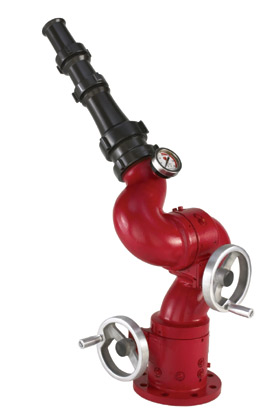

Elkhart's 8294-02 Scorpion® Deck Gun

8294-02 Scorpion® Deck Gun

Durable, lightweight Elk-O-Lite construction with stainless steel worm gears • Fully enclosed gear cases for protection from the elements • Flows up to 2000 GPM through 4.0" waterway with cast-in vane • Double handwheel control assures ease of operation and positive lock in any position • Vertical travel is 135° (90° above to 45° below horizontal) • Horizontal travel is a full, continuous 360° (handwheel remains stationary) • Stainless steel balls in all ball races • Furnished with liquid filled, 0-300# pressure gauge • Grease zerks for easy lubrication • Male outlet 3.5" NHT • Base inlet is 4.0"-150# ANSI flange • Furnished with 284A stream shaper • Optional with 181-3A deluge tip or ST-195 triple stacked tips (see page 16) • Finish red urethane enamel with hard anodized trim.

Specifications
GPM Flow	L/min Flow	Threads Discharge	Base	Width	Depth	Height	Weight Lbs.
2000	7570	3.50"	4.0"-150# ANSI Flange	13.25"	18.50"	20.50"	38.00
