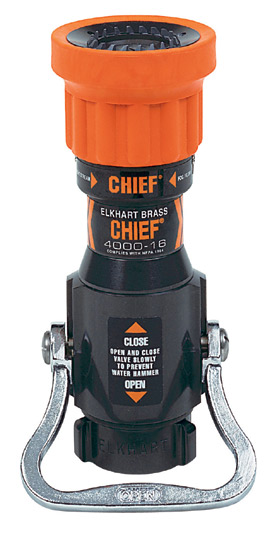

Elkhart's 4000-16 1.5" Mid-Range Chief ® Nozzle

4000-16 Mid-Range Chief ® Nozzle

Features

Benefits

•	Durable, Lightweight Elk-O-Lite ® Construction CHIEF ®Nozzles
•	Combination Fog and Straight Stream
•	Constant/Single Gallonage
•	Flow Efficient – Fully Machined Waterway
•	Flush Feature
•	Hydraulically Balanced Ball Shutoff
•	Adjustable Neoprene Seat with Acetal Ball
•	Heavy-Duty, Protective Urethane Bumper
•	Rugged Aluminum/Bronze Shutoff Handle with Double Stops
•	Replaceable, Spinning Teeth for Wide, Protective Fog
•	Durable, Non-Slip Pistol Grip – Lexan Labeling
•	Wide Range of Gallonages Available
•	Gallonage Stamped on Stem Head
•	Optional Low Pressure Gallonage on Some Models
•	Optional Molded Urethane Teeth on Some Models

•	Years of Dependable Service
•	Excellent Stream Quality – Straight Stream
•	and Fog
•	Ideal for Use with Foam Eductors
•	Ease of Operation
•	Same Gallonage – Straight Stream to Wide Fog
•	Excellent for Use with AFFF and Class A Foam
•	Easy Field Service
•	Flush Without Shutting Down
•	Excellent Wide Fog for Personal Protection
•	Large Gallonage Selection
•	Operate at Lower Pressures with Some Models
•	Easy to Work With – Easy to Train With
•	Compliance with NFPA 1964
•	Elkhart Quality

Similar to 4000-10 except with larger ball shutoff for greater flows • 150 GPM standard • Optional low pressure gallonages available: 150 GPM @ 50 psi; 125 GPM @ 75 psi; 150 GPM @ 75 psi, and 175 GPM @ 75 psi • Horseshoe handle standard • 1.375" waterway • Tab handle optional • 1.5" swivel base • Finish hard anodized.

Specifications
Hose Size	GPM Flow @ 100 psi	L/min Flow @ 100 psi	Threads Base	Length	Weight Lbs.
1.75"	60, 75, 95, 125, or 150	225, 284, 360, 475 or 568	1.5"	9.625"	4.25
