Elkhart's 299-11EL Free-Standing Elevated Monitor, 25' w/way

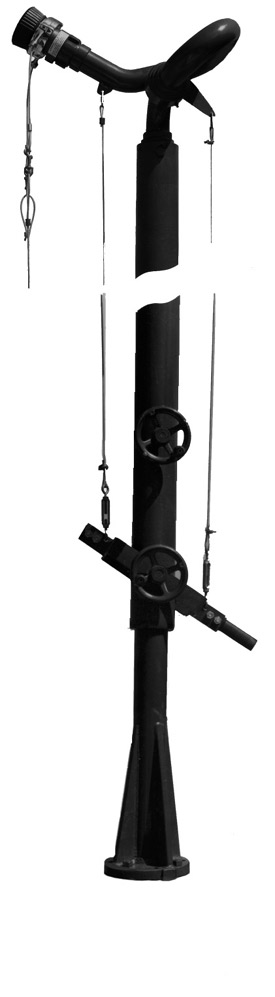

| 299-11EL Free-Standing Elevated Monitor |
| A pre-fabricated free-standing elevated monitor which utilizes the flow-efficient 299-11 “Python” monitor (see page 5-38) • Available in 10', 15', 20', 25', 30', and 40' heights • Flow-efficient, tubular steel riser pipe allows for flows up to 750 GPM (see chart for maximum flows) • Tubular steel horizontal drive sleeve allows for continuous 360° rotation • Vertical movement from 45° above to 35° below horizontal is controlled by stainless steel cables • Handwheel driven friction lock for horizontal positioning • Lever operated friction lock for vertical positioning • 2.5" NHT male outlet and 4.0"-150# or 6.0"-150# ANSI flange base (see chart for base sizes) • Optional CJ-B-RC or CJN-B-RC remote controlled nozzles are ideal for use on these monitors • Also optional with 282B stream shaper and 181 deluge tip • Units shipped assembled (25', 30' and 40' units shipped in two assembled sections, of 10,000 ft./lbs. applied to the face of the flange. each requiring two field welds) • Finish red urethane enamel. |
| Specifications |
| Tube, Tip and Discharge Size |
GPM Flow |
L/min Flow |
Base |
Opt. Comb. Fog Nozzle |
Height |
Weight Lbs. |
| 282B & 181 (1.5") |
750 |
2840 |
4.0' - 150# RF |
CJN-B-RC (750) |
10' |
300 |
| 282B & 181 (1.5") |
750 |
2840 |
4.0' - 150# RF |
CJN-B-RC (750) |
15' |
400 |
| 282B & 181 (1.5") |
750 |
2840 |
4.0' - 150# RF |
CJN-B-RC (750) |
20' |
500 |
| 282B & 181 (1.5") |
750 |
2840 |
6.0' - 150# RF |
CJN-B-RC (750) |
25' |
600 |
| 282B & 181 (1.5") |
750 |
2840 |
6.0' - 150# RF |
CJN-B-RC (750) |
30' |
700 |
| 282B & 181 (1.5") |
500 |
1895 |
6.0' - 150# RF |
CJ-B-RC (500) |
40' |
900 |
|
Price: $9,645.00
