Elkhart's 2954G 4.0" Gear Actuated Butterfly Valve

2954G 4.0" Gear Actuated Butterfly Valve

Features

Benefits

•	Rugged Cast Brass Construction*
•	Conforms to NFPA 1901 for Slow-Closing
•	UHMWPE Valve Seats*
•	Acetal Valve Balls (All but 4.0")*
•	Weathertight, Sealed Gearcase
•	Segmental Gear Constructed of Aluminum/Bronze
•	Polished, Hardened Steel Worm Gear with
•	Stainless Steel Shaft
•	Precision Needle Thrust Bearings
•	Gear Ratio 38:1
•	Rugged, Positive Travel Stops
•	Polished Handwheel with Sleeve
•	Weather-Sealed U-Joints for Drive Shaft
•	Over 70 End Cap Options*
•	Optional Valve Position Indicator Kit

•	Years of Dependable Service
•	Complies with NFPA 1901 for Slow-Closing
•	Safe and Efficient Operation
•	Applicable for Most Installations
•	Mount Switch/Indicator Anywhere
•	Easy to Install
•	Use as Inline, Suction, or Discharge
•	Easy Field Service – Drop-out or Swing-out
•	Elkhart Quality

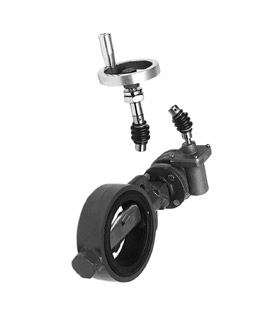

Rugged, cast iron construction • Wafer fits between two 4.0" - 150# ANSI flanges • Aluminum/bronze disc with reinforced EPDM seat (bi-directional) • Two-piece stainless steel stem • Furnished with 6.5" polished chrome remote handwheel, two (2) weather-sealed U-Joints and one (1) thru-the-panel bushing • Optional with Valve Position indicator Kit • Optional with handwheel mounted to valve (please specify) • Cast finish • Weight, 22.50 lbs.
