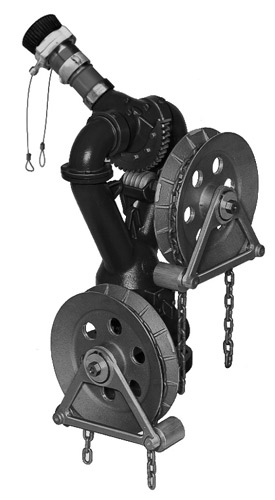

Elkhart's 294-11CW Chainwheel Operated Elevated Monitor

294-11CW Chainwheel Operated Elevated Monitor

This elevated remote controlled monitor is designed for the horizontal and vertical movement to be controlled at ground level • By utilizing two chain driven wheels the monitor can be rotated 360° and the vertical position can be adjusted from 90° above to 60° below horizontal • The monitor will flow up to 1000 GPM and is constructed of rugged cast brass with chrome plated brass worm gears and stainless steel worm drive shafts • Grease zerks are furnished at swivel joints for easy lubrication • The chainwheels and chain guides are aluminum alloy (brass available upon request) • Available with 4.0" NPT female or 4.0"-150# ANSI flange base (please specify) • Monitor furnished with CJ-B-RC nozzle and 282B stream shaper (CJN-B-RC nozzle optional at additional cost) • Optional with 282B stream shaper and 181 deluge tip • Customer furnishes and is responsible for integrity of the standpipe on which monitor is mounted (contact our engineering department for guide-lines and recommendations) • Customer also furnishes chain for operating monitor (.250" non-magnetic aluminum chain, McMaster-Carr part number 3620T21) • Finish red urethane enamel with satin brass trim • Weight, 139 lbs. with stream shaper and nozzle.
