Brooks Equipment
|
DDPBEAM1224S
|
|
System Sensor- BEAM1224(S) Single-ended Reflected Type Beam Smoke Detector
|
BK-DDPBEAM1224S
|
|
System Sensor- BEAM1224(S) Single-ended Reflected Type Beam Smoke Detector
|
List Price: $1,015.95
Your Price: $912.99
You Save: $102.96 (10 %)
Now in stock!
Detailed Description

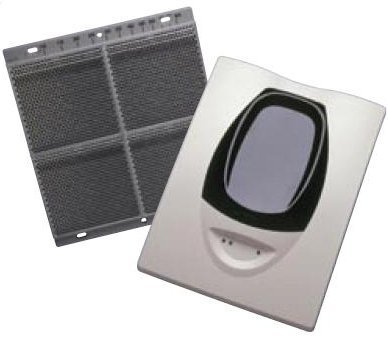

System Sensor- BEAM1224(S) Single-ended Reflected Type Beam Smoke Detector
System Sensor Model BEAM1224 is a four-wire conventional reflected beam smoke detector, which is uniquely suited for protecting open areas with high ceilings, where other methods of smoke detection are difficult to install and maintain. It is to be used with UL Listed compatible control panels only. An advantage of this single-ended reflective design is that it is much easier to install than the dual-ended projected beam detectors. Alignment is quickly accomplished via an optical sight and a two-digit signal strength meter incorporated into the product. Another advantage of the BEAM1224 is that it is listed for operation in temperatures ranging from – 22°F to 131°F.
Features:
- 16 to 328 foot protection range (30 - 60 ft spacing)
- Single-ended, reflective design
- User friendly alignment procedure
- Digital display for easy alignment
- Built-in automatic gain control compensates for signal deterioration from dust build-up
- Integral NFPA 72 sensitivity test feature
- Optional remote test station
- Removable terminal blocks for ease of installation and service
- UL listed and FM Approved
Specifications:
- LITERATURE
- SPECIFICATIONS
- Voltage Range: 10.2 - 32VDC
- Current
- Test Mode: 500mA (maximum)
- Temperature Range: -22 -131° F
- Relative Humidity: 10 - 93%, non-condensing
- Dimensions
-
Height: 10"
-
Width: 7 1/2"
- Weight: 3.9 lbs
|
|
|
|
|
|
